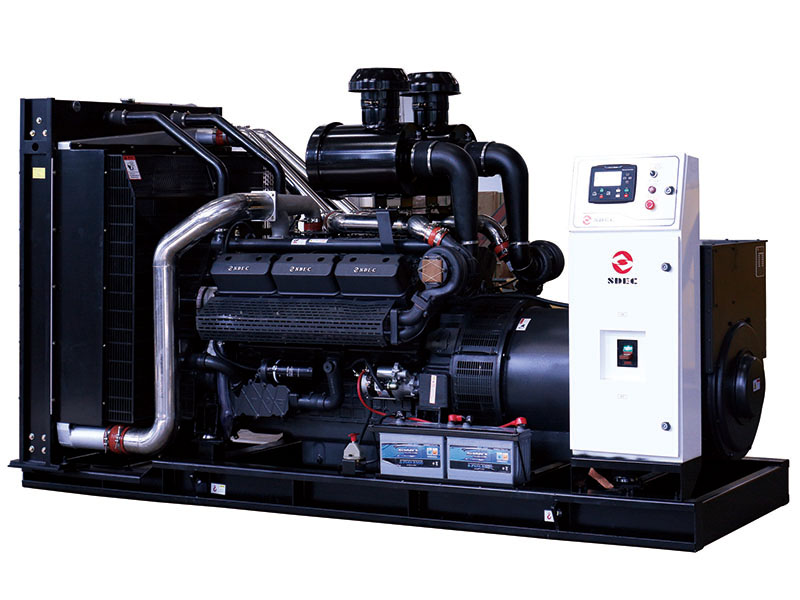

上柴股份400KW柴油發電機組
該系列發電機組采用上海柴油機股份有限公司生產H系列、D系列、E系列、G系列、W系列電站柴油機作為動力,配置發電機。機組具有調壓精度高、動態性能好、電壓波形畸變小、效率高、工作可靠、使用壽命長、經濟性能好等特點。機組配置全套免維護蓄電池啟動系統,用戶只需注入機油和防凍液、接通開關就可以啟動機組,輸出電力,提高了使用的便捷性。 This series of generator sets are made by Shanghai diesel engine co., LTD., which produces series H series, D series, E series, G series and W series power station diesel engines as power, and equipped with famous brand generator. The unit has the characteristics of high pressure regulating precision, good dynamic performance, low voltage waveform distortion, high efficiency, reliable work, long service life and good economic performance. The unit is equipped with a full set of no-maintenance battery startup system. The user can start the unit with the injection of oil and anti-freeze liquid and switch on the switch, so as to output power and improve the convenience of use. |
機組型號 | 輸出功率KW | 輸出功率KVA | 電流A | 柴油機型號 | 缸數 | 缸徑*行程mm | 潤滑油容量L | 油耗g/kw.g | 機組外形尺寸L×W×H | 機組重量kg |
FM50GF | 50 | 62.5 | 90 | SC4H95D2 | 4 | 135*140 | 25 | 232 | 2200*800*1380 | 1500 |
FM75GF | 75 | 93.75 | 135 | SC4H15D2 | 4 | 135*150 | 25 | 225 | 2300*900*1300 | 1600 |
FM100GF | 100 | 125 | 180 | SC4H160D2 | 4 | 105*124 | 13 | 193 | 2500*900*1500 | 2000 |
FM120GF | 120 | 150 | 216 | SC4H180D2 | 4 | 135*150 | 28 | 226 | 2600*900*1550 | 2250 |
FM150GF | 150 | 187.5 | 270 | SC7H230D2 | 6 | 105*124 | 17.5 | 199 | 2600*900*1550 | 2300 |
FM170GF | 170 | 212.5 | 306 | SC7H250D2 | 6 | 114*135 | 19 | 198 | 2600*900*1600 | 2400 |
FM180GF | 180 | 225 | 324 | SC8D280D2 | 6 | 114*144 | 19 | 198 | 2600*1050*1600 | 2400 |
FM200GF | 200 | 250 | 360 | SC9D310D2 | 6 | 114*144 | 19 | 198 | 2600*1050*1600 | 2600 |
FM220GF | 220 | 275 | 396 | SC9D340D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2650 |
FM250GF | 250 | 312.5 | 450 | SC13G355D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2800 |
FM250GF | 250 | 312.5 | 450 | SC13G420D2 | 6 | 135*150 | 33 | 225 | 3000*1280*1650 | 2800 |
FM300GF | 300 | 375 | 540 | SC12E460D2 | 6 | 128*153 | 37 | 192 | 3000*1280*1700 | 3450 |
FM320GF | 320 | 400 | 576 | SC15G500D2 | 6 | 135*165 | 33 | 200 | 3200*1350*1850 | 3500 |
FM350GF | 350 | 437.5 | 630 | SC15G500D2 | 6 | 135*165 | 33 | 202 | 3200*1350*1900 | 3500 |
FM400GF | 400 | 500 | 720 | SC25G610D2 | 12 | 135*150 | 65 | 202 | 3400*1500*1950 | 4200 |
FM450GF | 450 | 562.5 | 810 | SD25G690D2 | 12 | 135*155 | 65 | 202 | 3500*1500*1950 | 4500 |
FM500GF | 500 | 625 | 900 | SC27G755D2 | 12 | 135*155 | 65 | 202 | 3500*1500*2000 | 4800 |
FM550GF | 550 | 687.5 | 990 | SC27G830D2 | 12 | 135*155 | 65 | 202 | 3600*1600*2000 | 5000 |
FM600GF | 600 | 750 | 1080 | SC27G900D2 | 12 | 135*155 | 65 | 202 | 3650*1600*2000 | 5050 |
FM660GF | 660 | 825 | 1188 | SC33W990D2 | 6 | 180*215 | 75 | 205 | 4400*1700*2150 | 5200 |
FM800GF | 800 | 1000 | 1440 | SC33W1150D2 | 6 | 180*215 | 75 | 205 | 4800*1800*2250 | 6500 |
1.以上技術參數轉速為1500RPM,頻率50HZ,額定電壓400/230V,功率因數0.8,接線方式為三相四線。 2.發電機可以根據客戶需求,選用上海斯坦福、上海馬拉松、無錫斯坦福等知名品牌。 3.60HZ發電機組可以根據客戶的特殊需要定制。 4.本參數表僅供參考,如有更改恕不另行通知。 | ||||||||||
標準配置 Standard equipment: 發動機 diesel engine 發電機 alternator 散熱器 water cooled radiator 工業消音器 、波紋管 industrial silencer and flexible exhaust hose 啟動免維護蓄電池及蓄電池 電池連接線 maintenance-free lead-acid starting batteries and battery connect wires 輸出斷路器 output circuit breaker 智能控制屏 digital control panel 鋼式底架 steel base frame | ||||||||||
可選配置 Optional equipment 低噪音靜音機箱 Low noise silent case 四輪移動拖車電站 Four-wheel mobile trailer power station 自啟動、自轉換 開關柜 Self - start, self - conversion switch cabinet 自動并機控制系統 automatic parallel operation control system 電熱式水套加熱器 electrothermal water jacket heater |
